Continuous weighing, Loss-in-weight feeders

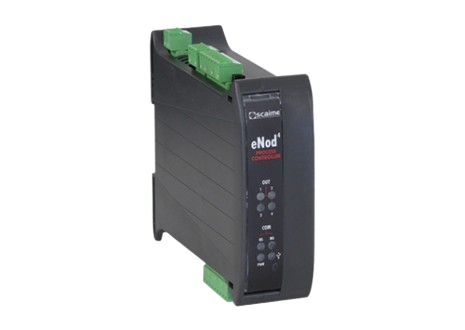

eNod4-F DIN
±500 000 d, 200 meas/s
- Presentation on rail DIN housing
- Up to 8 strain gauge load cells
- Load cell failure detection device
- Programmable digital filters
- Continuous flow rate and weight total calculation
- Flow control with built-in self-adjustable PID
- Automatic control of feeder refilling
- 4 digital inputs and 4 digital outputs for the dosing process control
- Analog output 0-10V or 4-20mA (IO+ option)
- 1 USB port for setting by PC
- Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
- Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
- Integrated web server for monitoring and remote setting
- 1 RS485 for eNodTouch touch screen panel
- Optional Bluetooth communication
